- Battery Included: No
- Hign-concerned Chemical: None
- Electronic: No
- Theory: Infrared Thermometer
- Display Type: DIGITAL
- Power Type: Aaa Battery
- Certification: None
- Model Number: UT306S UT306C
- Origin: Mainland China
- Max Measuring Temperature: 120°C & Above
- Style: Handheld
- Brand Name: UNI-T
- Is Smart Device: No
- Use: Industrial
- Display Size: 1.9 Inches & Under
- Display Type: DIGITAL
- Distance to spot ratio: 12:1
- Emissivity: 0.10-1.00 adjustable
- Laser wavelength: 630nm-670nm
- UT306S Laser type: Single
- UT306C Laser type: Circle
- MAX/MIN/AVG/DIF mode: Yes
- Lock measurement: Yes
- High and low temperature alarm: Yes
- Electronic thermometer: Temperature Instruments
- Surface thermometer: Infrared temperature gun

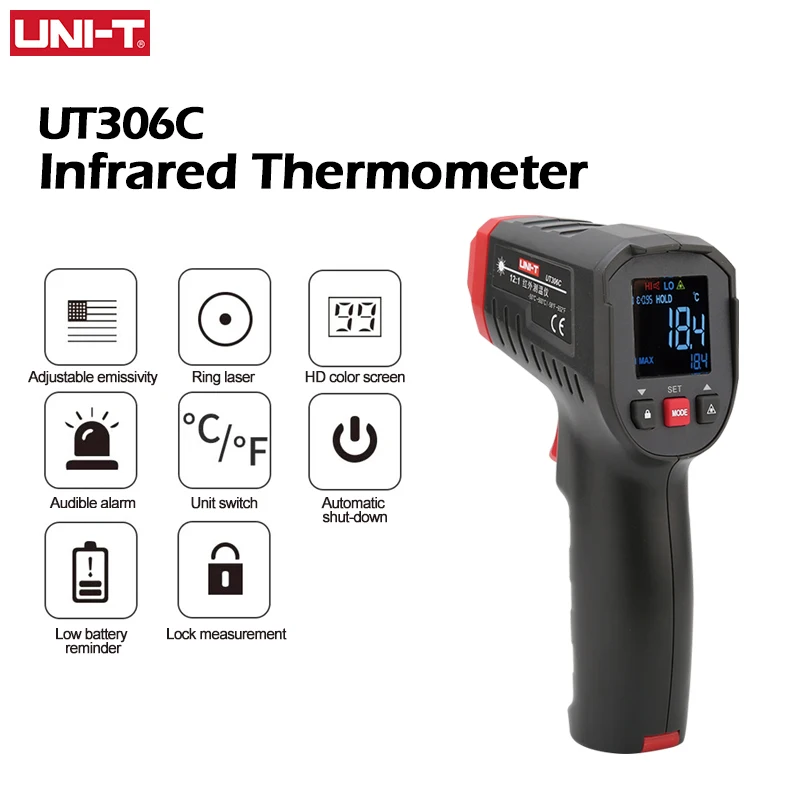

UT306S UT306C Infrared Thermometer
UT306S UT306C Infrared Thermometer is robust and easy to use. Users can measure the surface temperature without contacting the object. This product series can be used in various fields such as food industry, machine maintenance, metal working, cold storage, and other industrial fields.
Features
1.Wide Temperature range: -50℃～500℃
2.Lock the temperature without pulling the trigger
3.High and low temperature alarm
4.℃/℉ options
5. Auto power off
6. Low battery indication
Parameter
|
Specifications |
||
|
Model |
UT306S |
UT306C |
|
Temperature range |
-50℃～500℃ |
-50℃～500℃ |
|
Laser type |
Single |
Circle |
|
Accuracy |
±2°C or ±2% |
±2°C or ±2% |
|
Resolution |
0.1°C |
0.1°C |
|
Distance to spot ratio |
12:01 |
12:01 |
|
Response time |
≤500ms |
≤250ms |
|
Emissivity |
0.10～1.00 adjustable |
|
|
Laser class |
Class 2 |
|
|
Laser power |
＜1mW |
|
|
Laser wavelength |
630nm～670nm |
|
|
Spectral response |
8μm～14μm |
|
|
Features |
||
|
Display type |
TN-LCD |
EBTN-LCD |
|
Unit selection |
°C/°F |
|
|
Laser on/off |
√ |
|
|
Data hold |
√ |
|
|
Auto power off |
√ |
|
|
Low battery indication |
√ |
|
|
MAX/MIN/AVG/DIF mode |
√ |
|
|
High/low temperature alarm (audible) |
√ |
|
|
Drop test |
1m |
|
|
General Characteristics |
||
|
Power |
1.5V AAA x 2（No include) |
|
|
Product color |
Red and grey |
|
|
Product net weight |
161.5g |
|

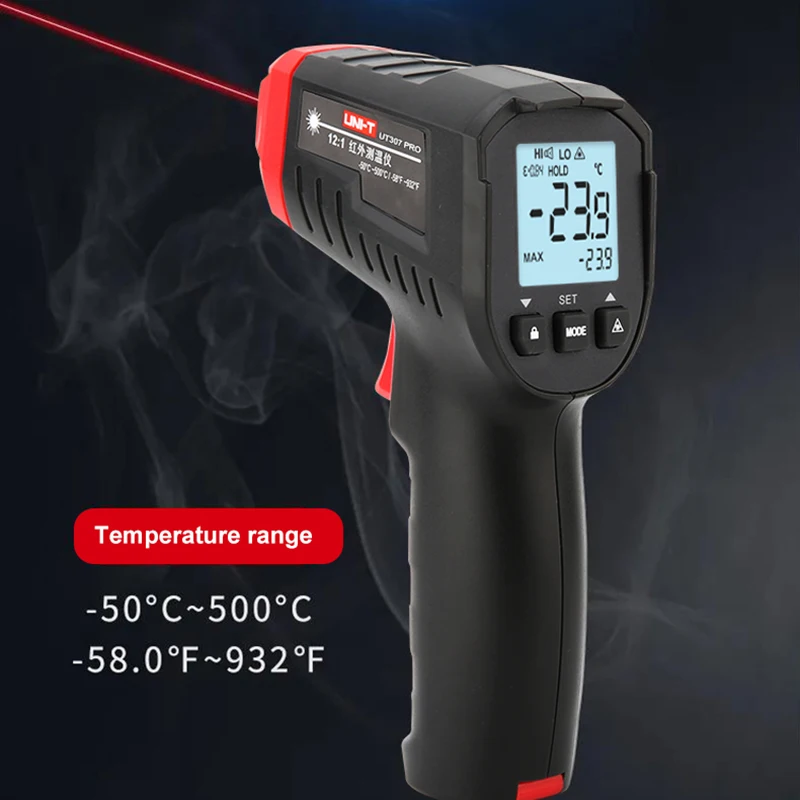

Wide measurement range
Temperature range:-50℃～500℃(-58~932°F)

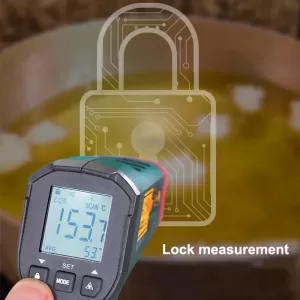

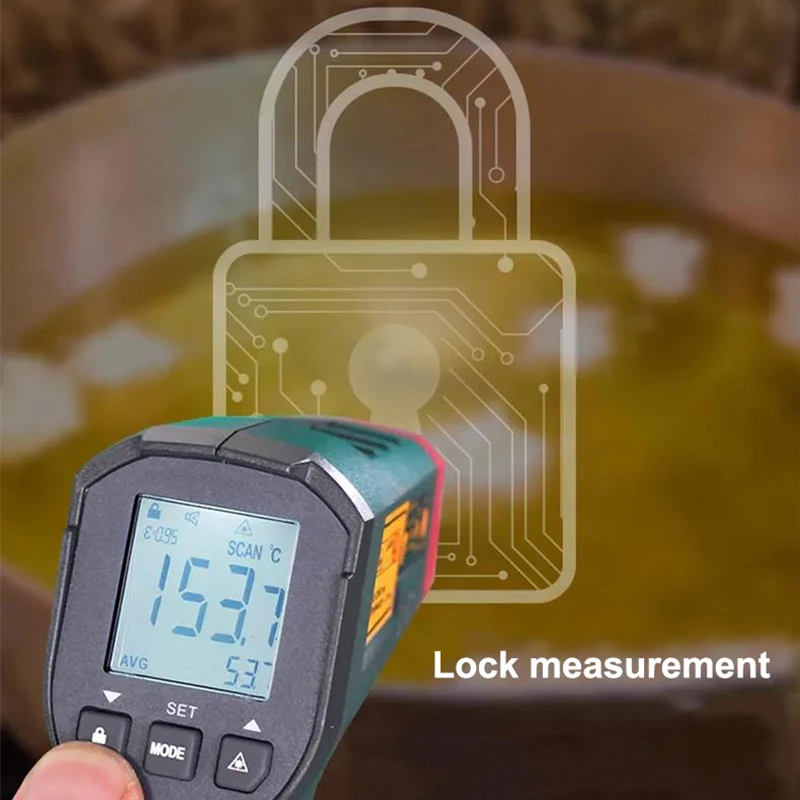

Lock measurement
UT306S can lock the temperature without pulling the trigger.
Circle Laser(UT306C)
Fast response
Response time ≤250ms

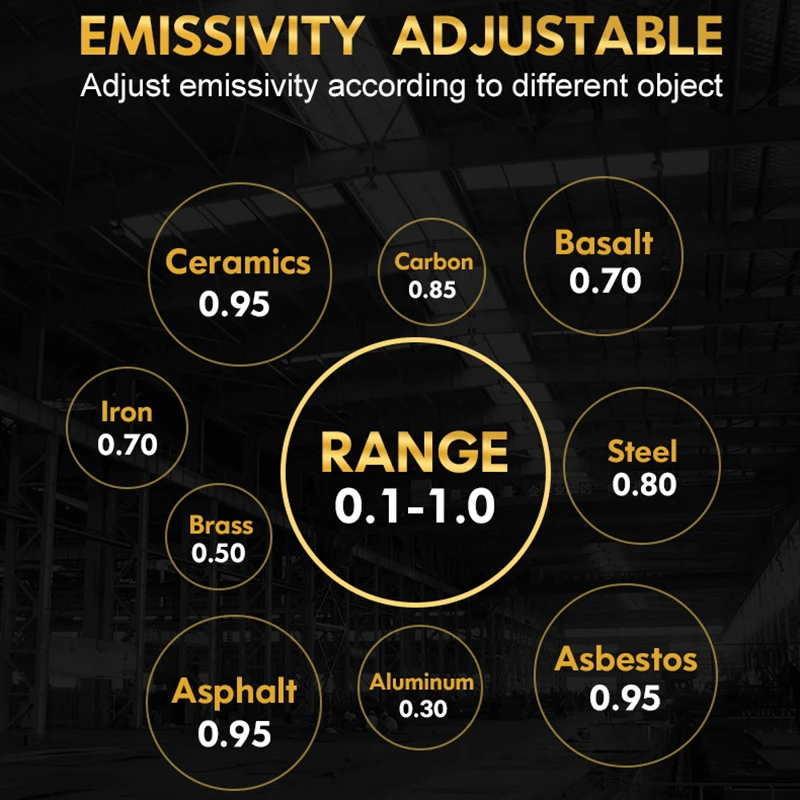

Emissivity Adjustable
0.10～1.00 adjustable

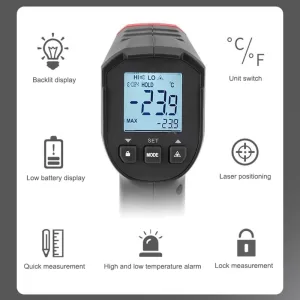

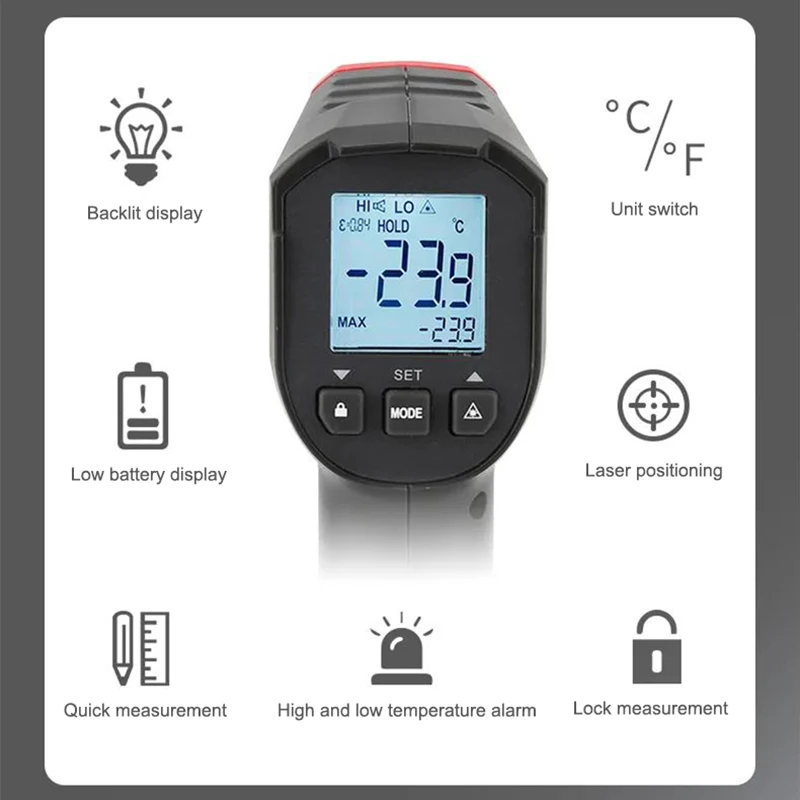

LCD backlight display
Notice please: battery no include!
