TA611A K Type Thermocouple Thermometer Digital Temperature Meter Contact Thermometer Surface Temperature Tester

1、NOTE

Instrument Temperature Measurement Range:

K-type: -200~+1372°℃ (-328~+2501°F)

J-type: -200~+1372°℃ (-328~+2501°F)

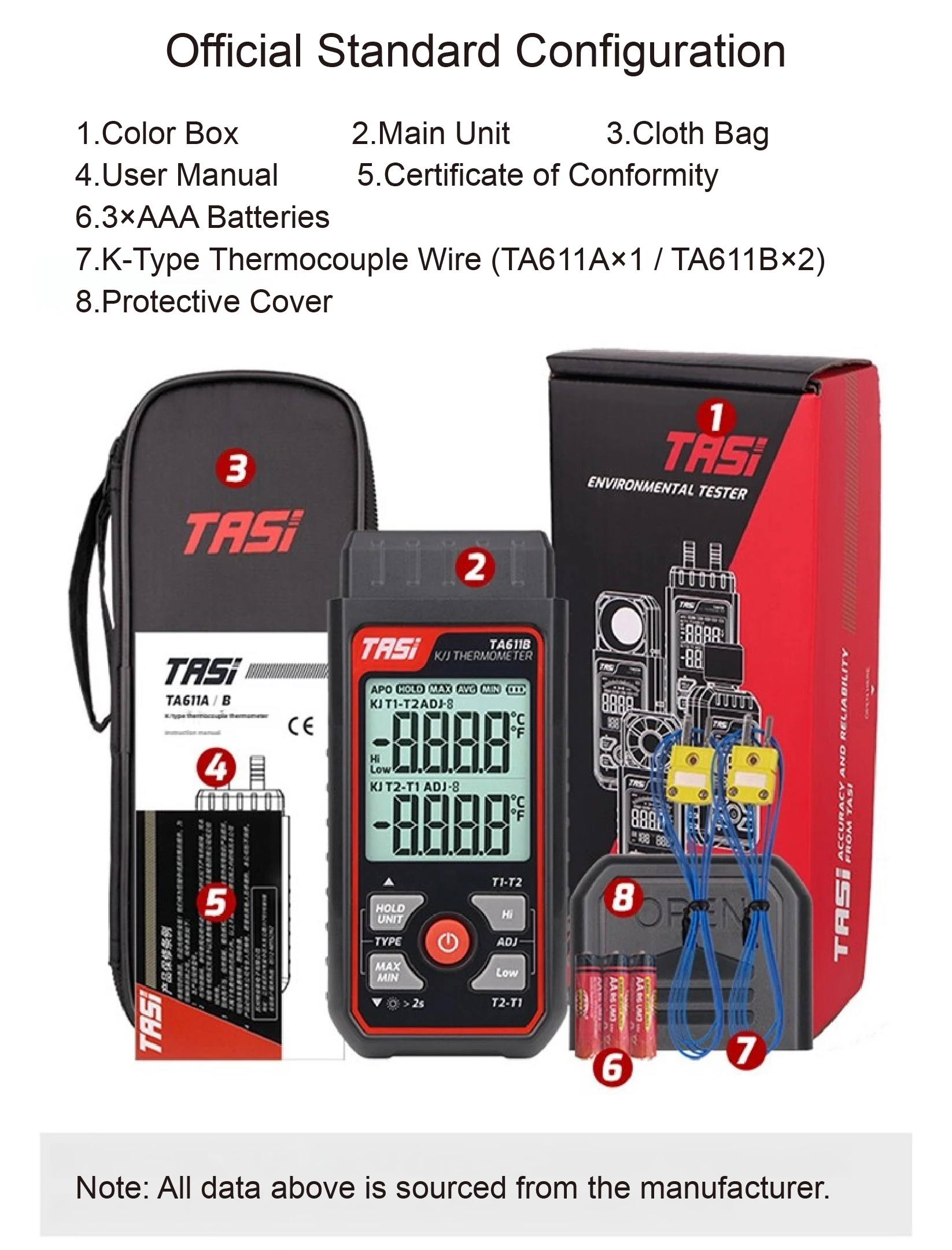

Default configuration includes:

Main unit ×1 + probe ×1

· Power supply: 3 × 1.5V AAA batteries

· K-type thermocouple probe (1M cable)

· Measurement range: 0~200°C

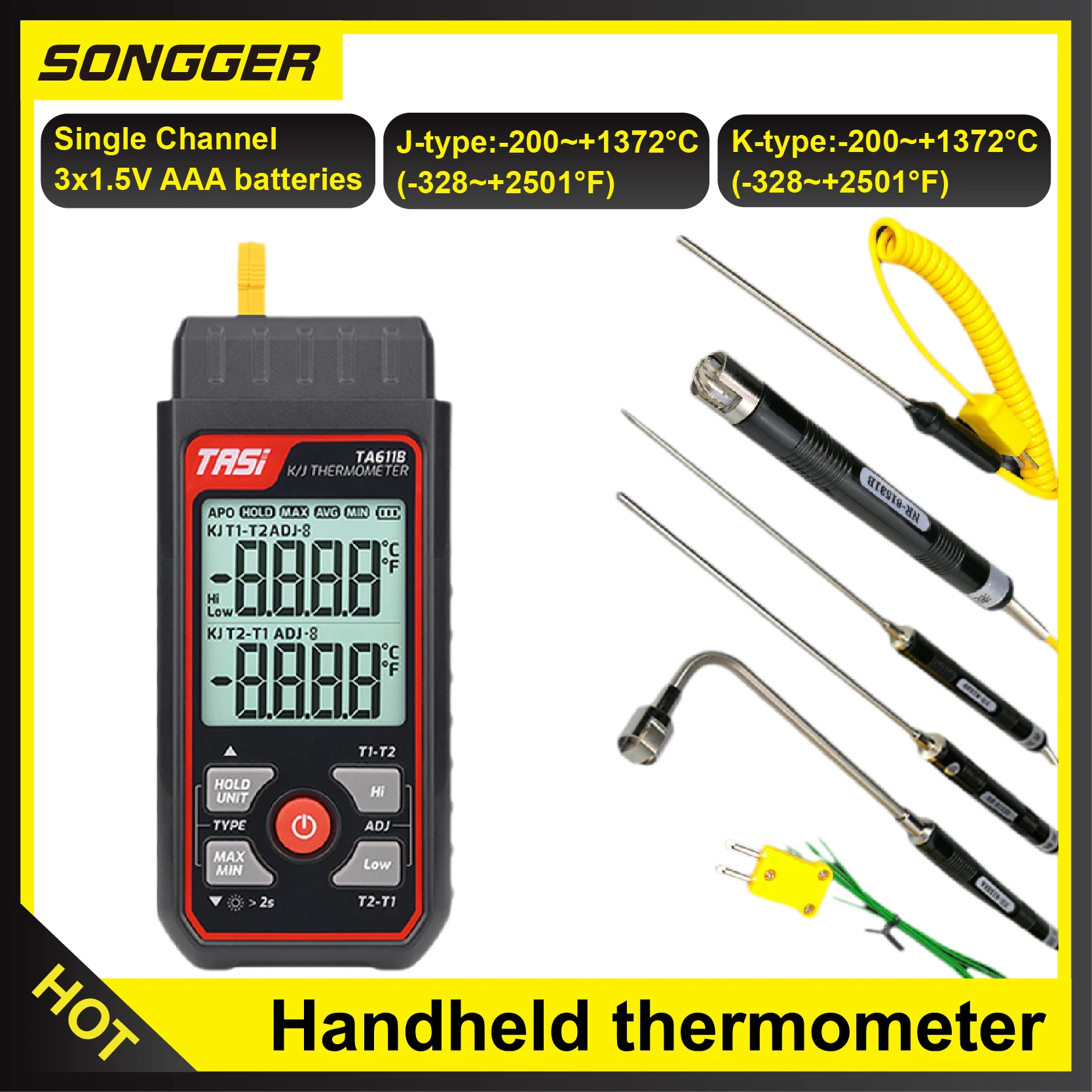

Optional configurations include:

· Single-channel or dual-channel options

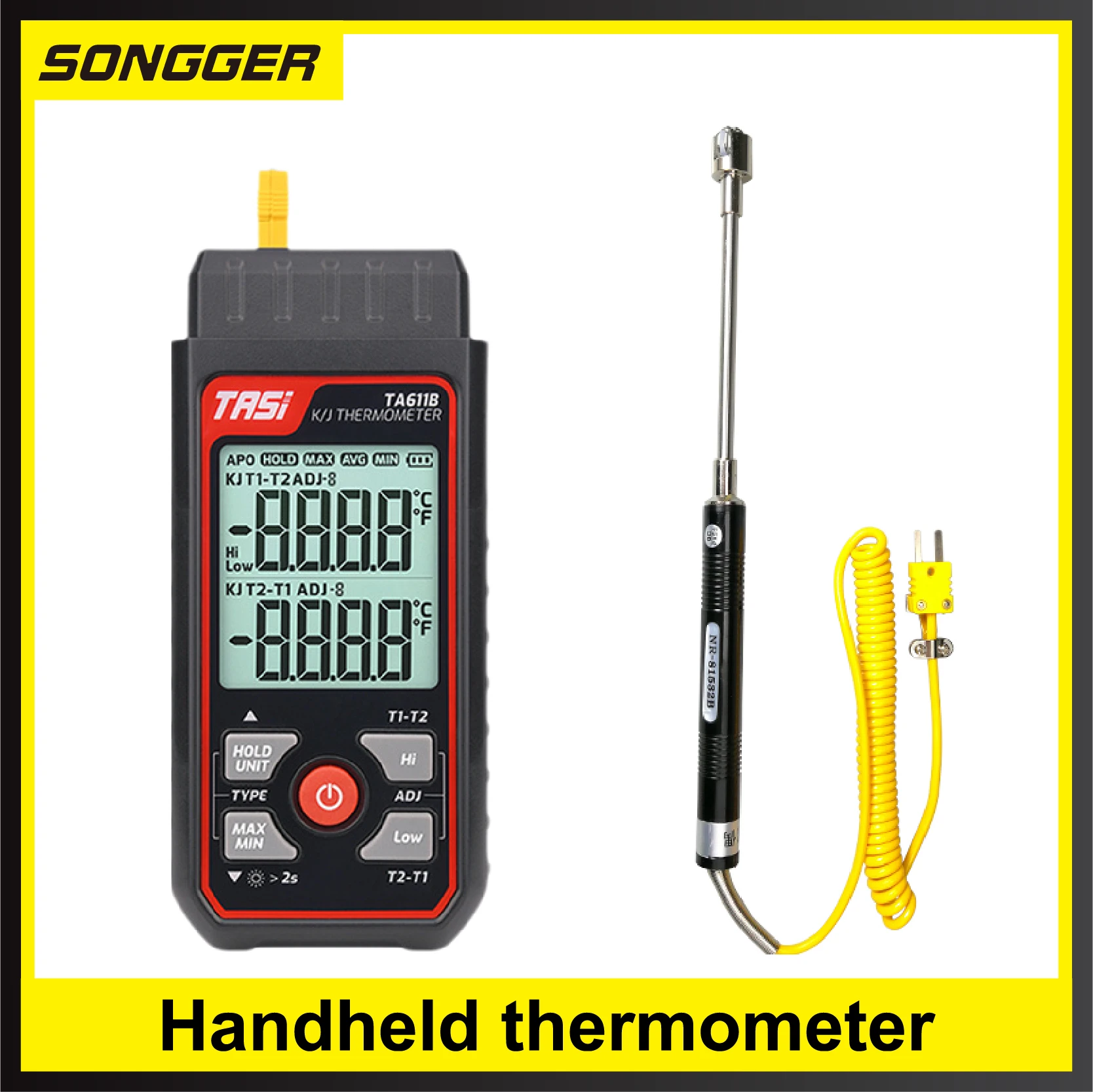

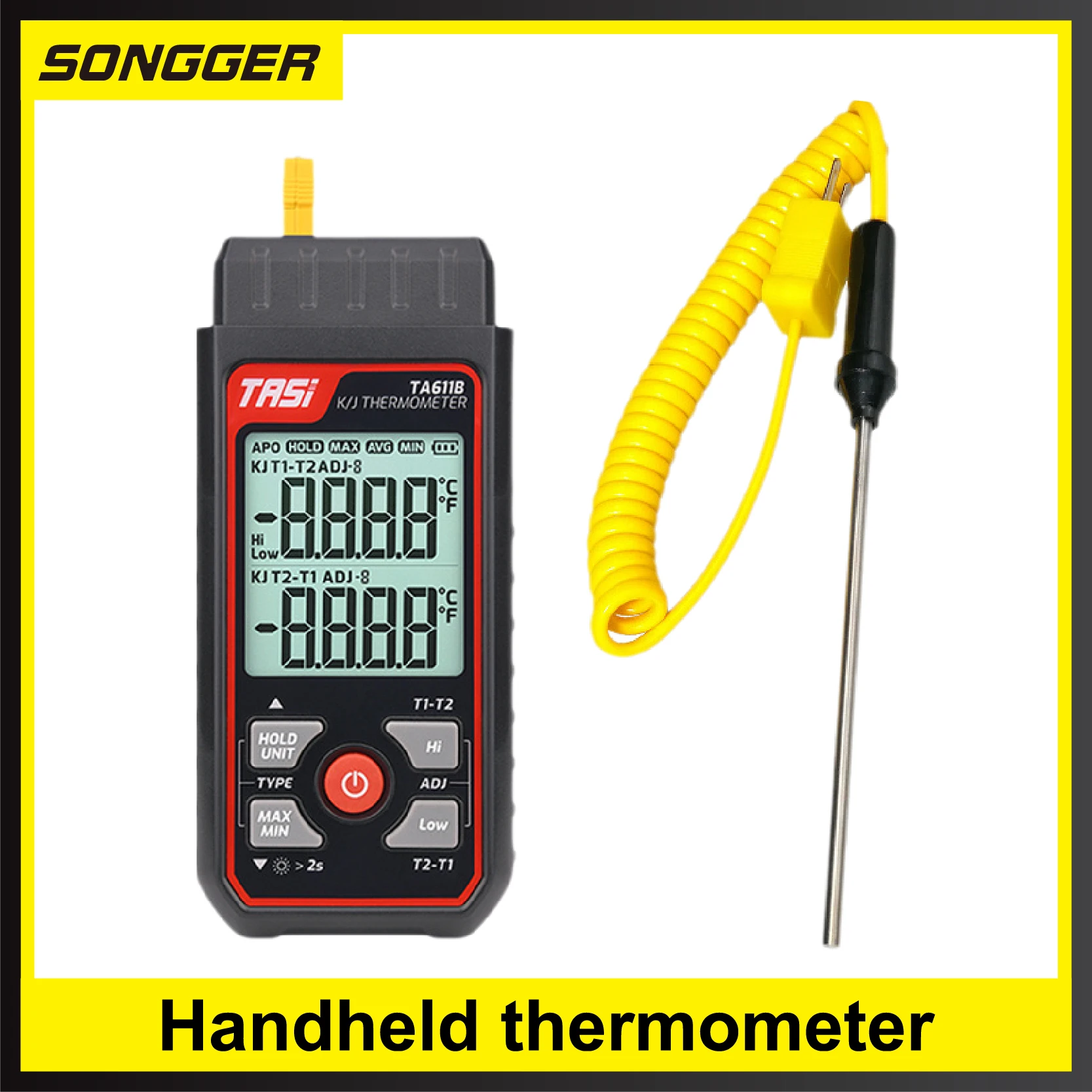

· Various probes available:

· Handle-Type: φ3 × 200 mm (-50~500°C)

· 81532B: φ6 × 115 mm (0~500°C)

· 81533A: φ6 × 150 mm (0~800°C)

· Dual-Pin Thermocouple: 240 mm (-50~500°C)

· Roller Thermocouple: (-50~500°C)

· Encapsulated Waterproof Probe: φ4 × 30 mm (0~200°C)

·Adhesive Thermocouple: 12 × 20 mm (0~260°C)

Customization is available upon request. Please contact us for details.

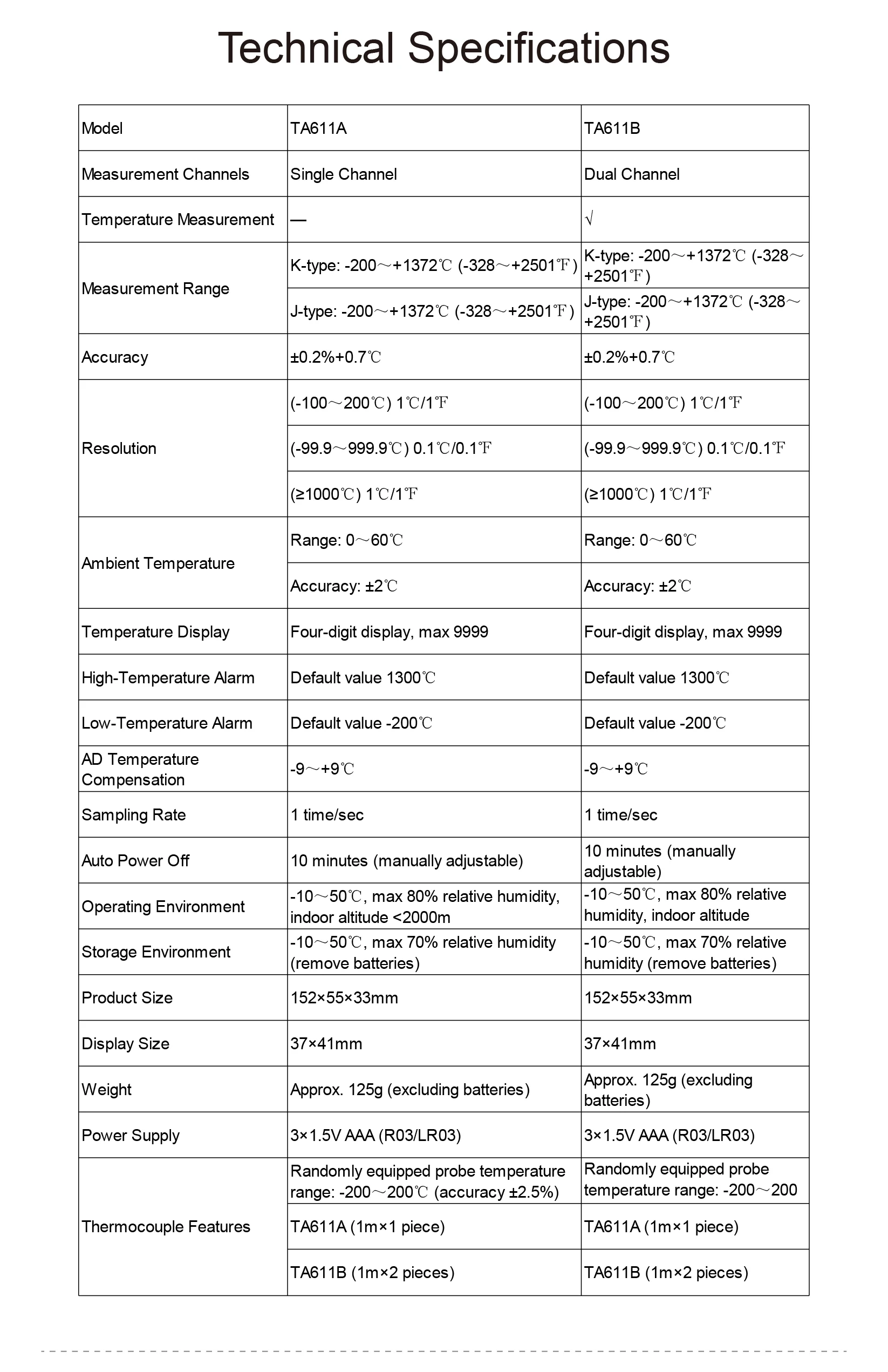

2.Parameter

3.Features

1、Wide Temperature Range

Measures from -200°C to 1372°C (-328°F to 2501°F) for both K/J-type thermocouples.

Ideal for industrial, laboratory, and field use.

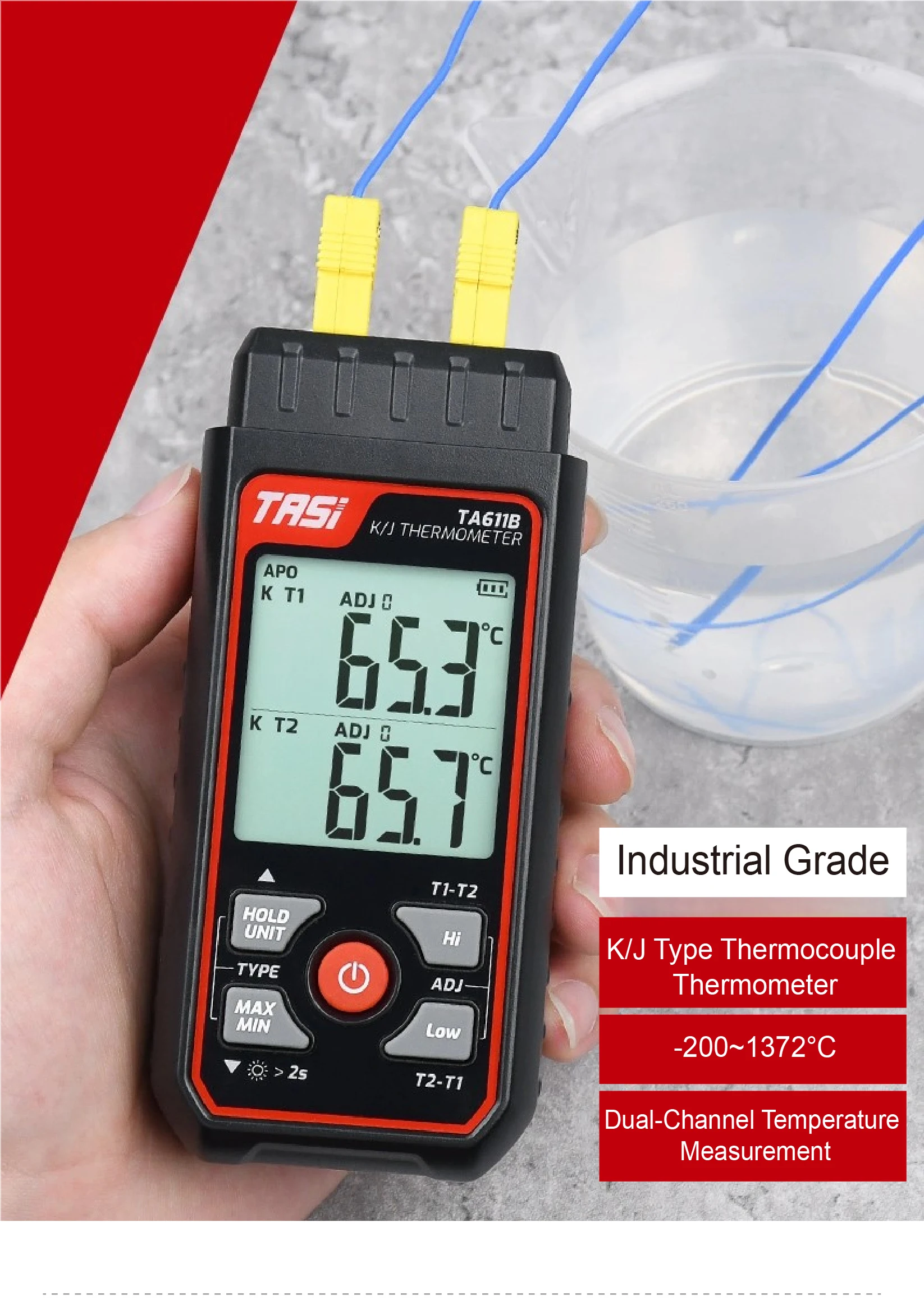

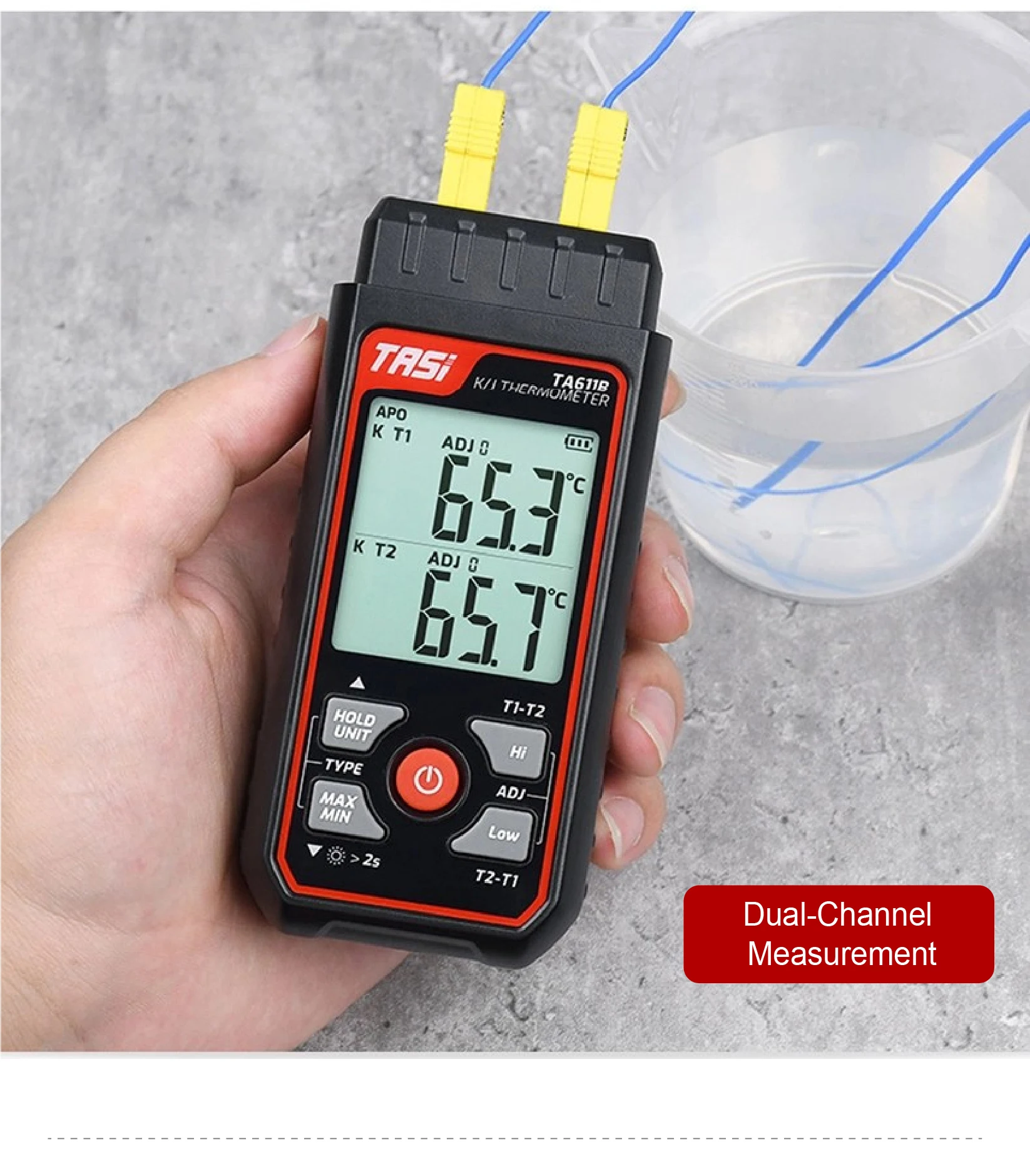

2、Dual Channel Measurement (TA611B)

Simultaneously monitor temperatures at two different locations for efficiency.

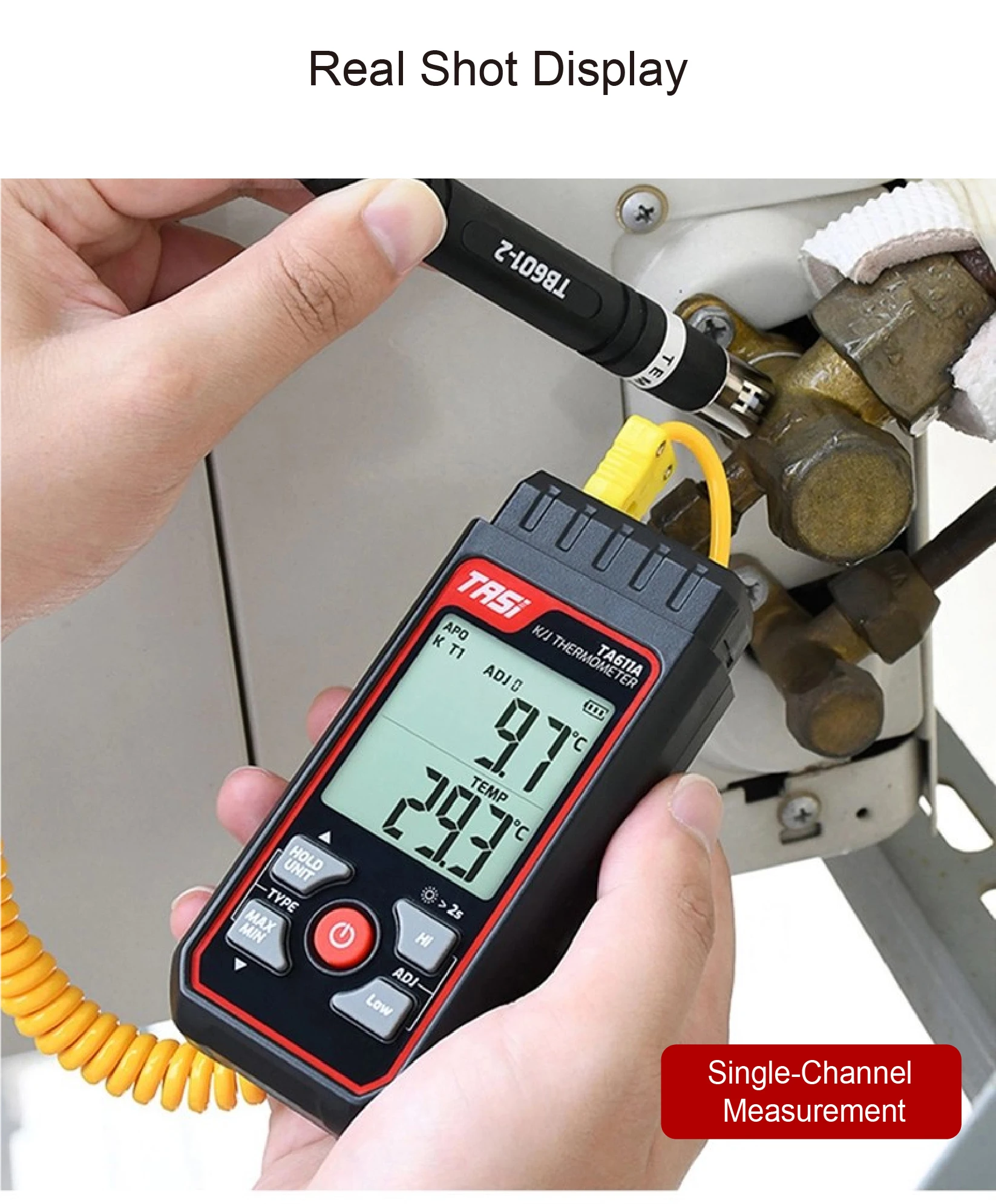

TA611A supports single-channel measurement for simpler needs.

3、High/Low Temperature Alarms

Customizable alarm thresholds for both high and low temperatures.

Red backlight alerts you when readings exceed set values.

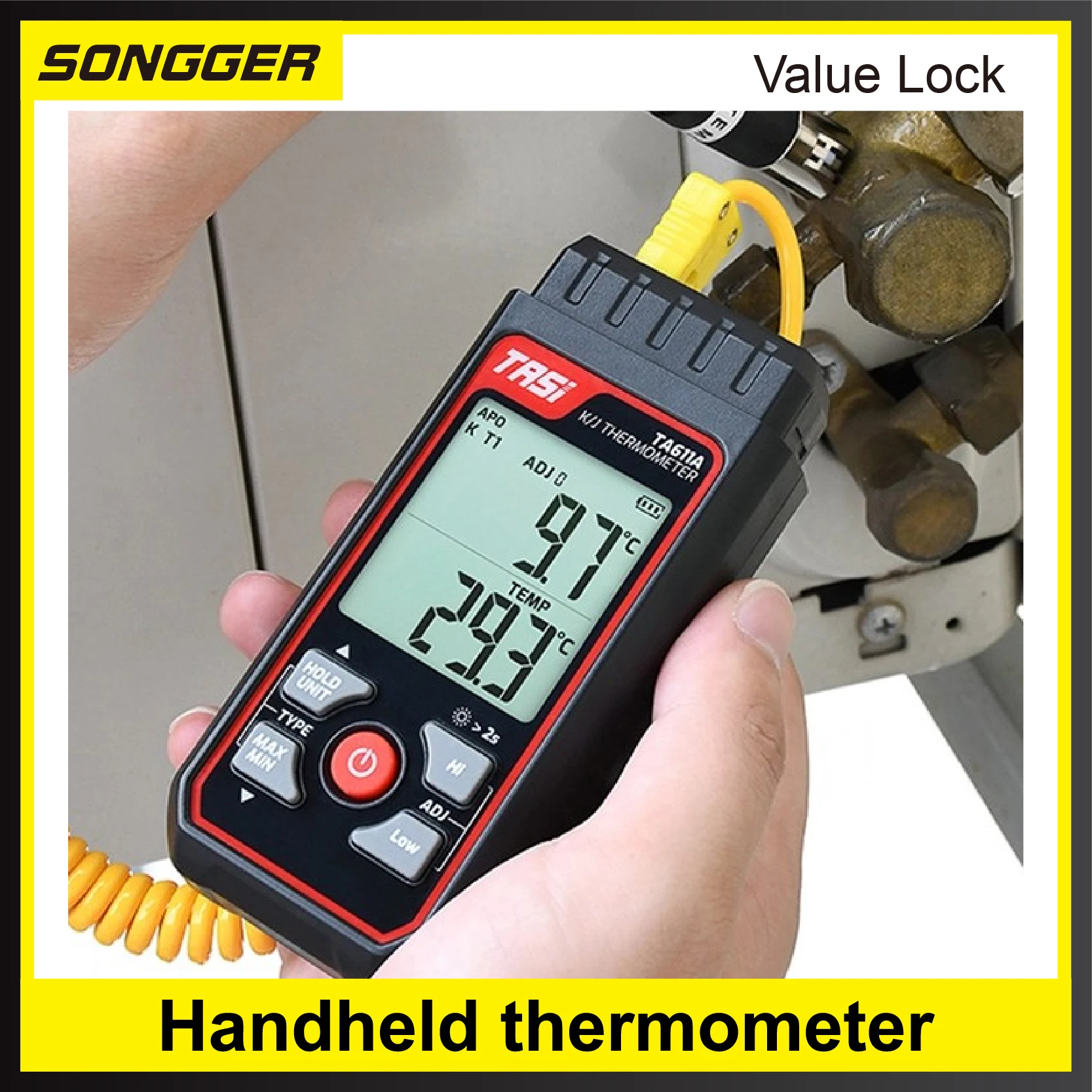

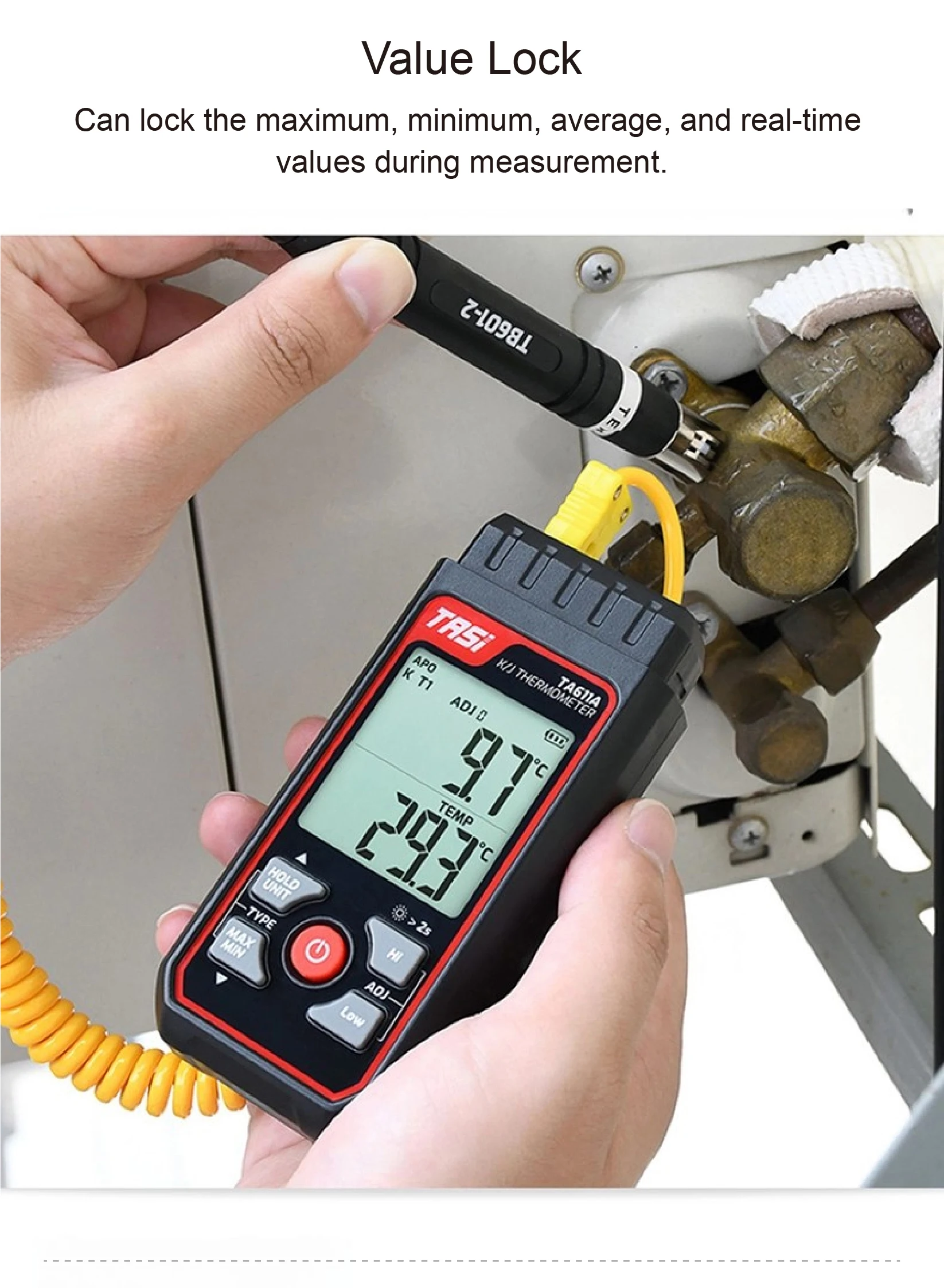

4、Data Hold Function

Locks maximum, minimum, average, and real-time readings for better analysis.

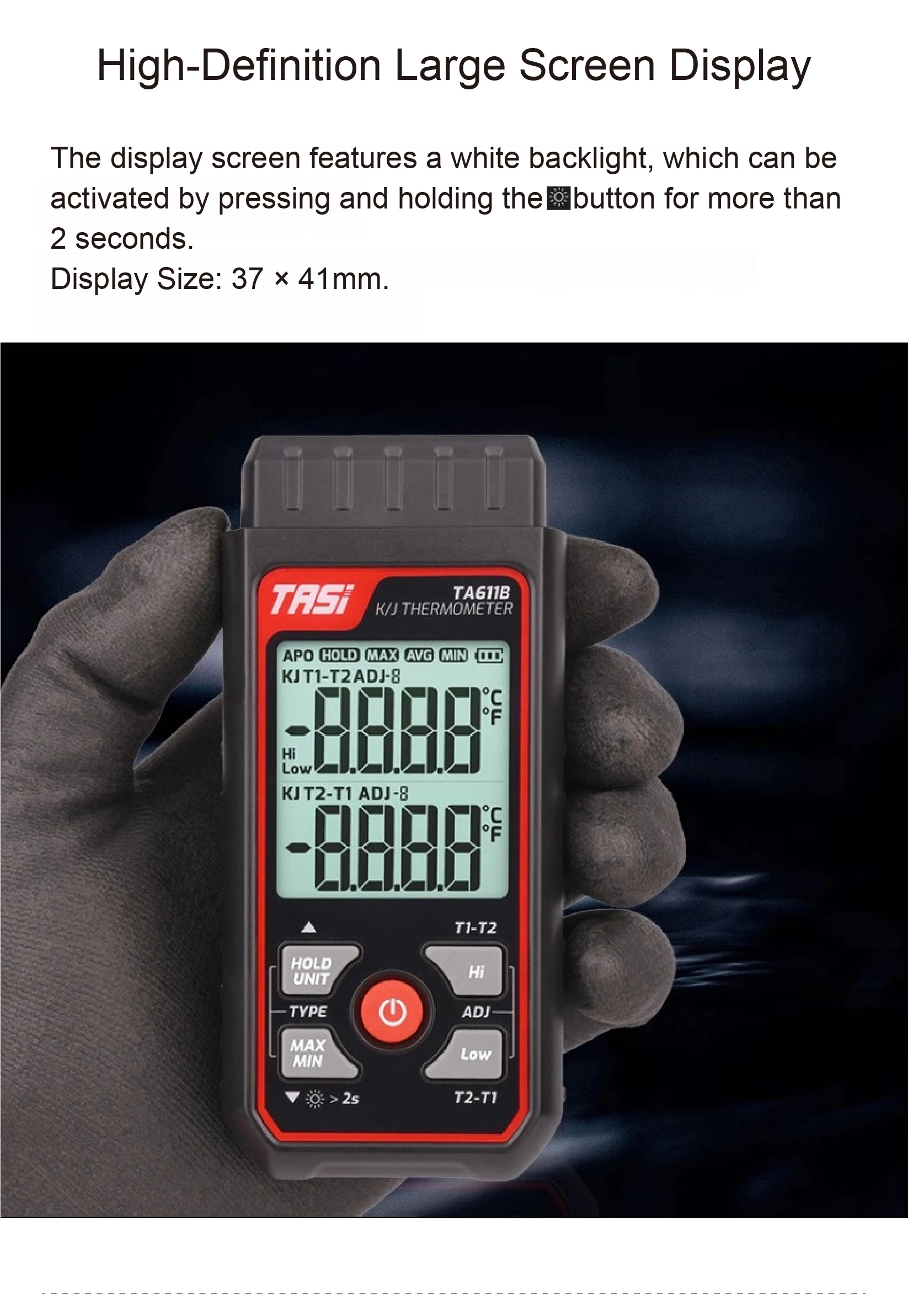

5、Backlit Display & ℃/°F Conversion

Clear four-digit display with backlighting for low-light environments.

Easily switch between Celsius and Fahrenheit as needed.

6、Adjustable Temperature Compensation (ADJ)

Calibration feature (-9°C to +9°C) ensures accurate measurements under varying conditions.

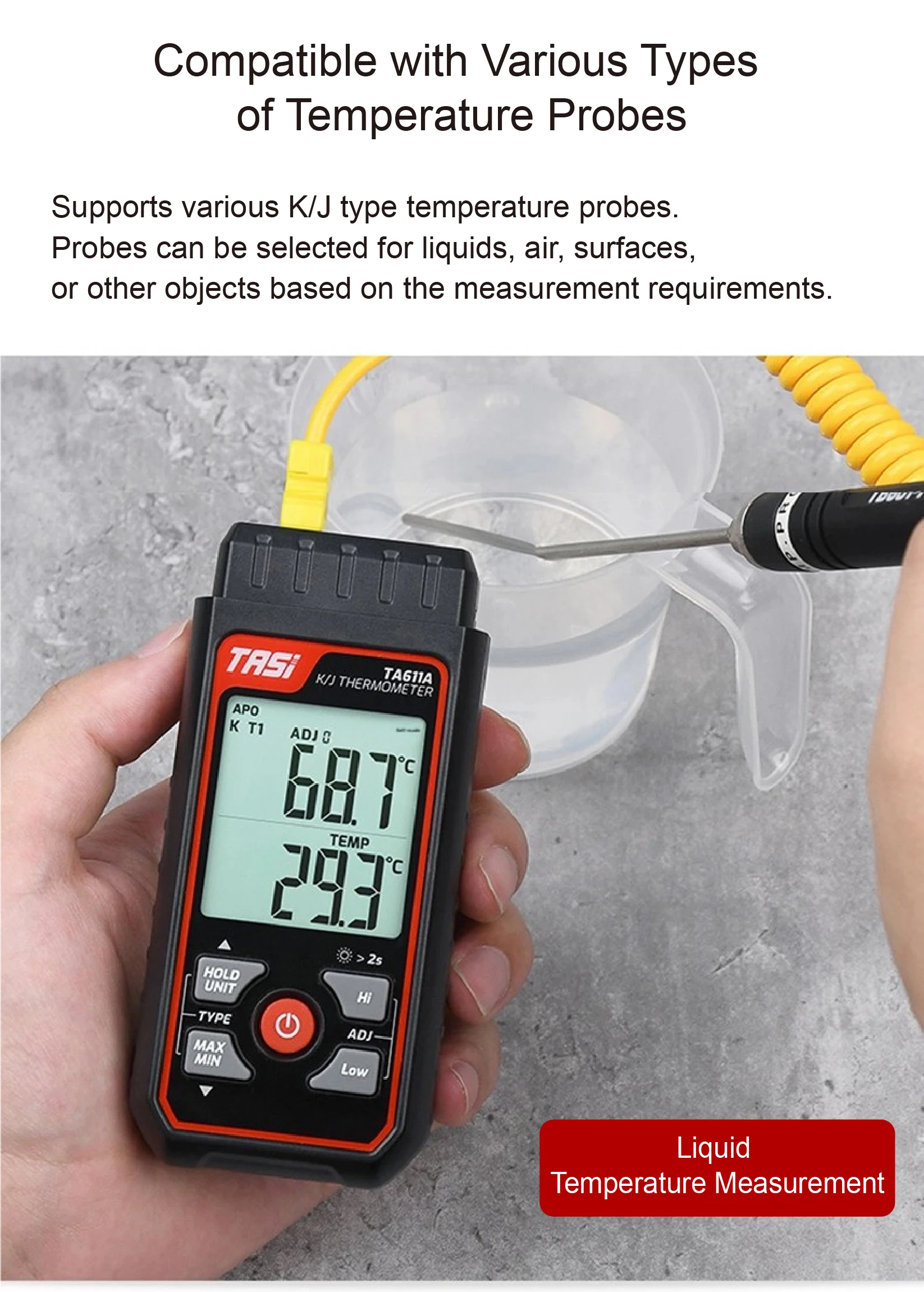

7、Versatile Probe Compatibility

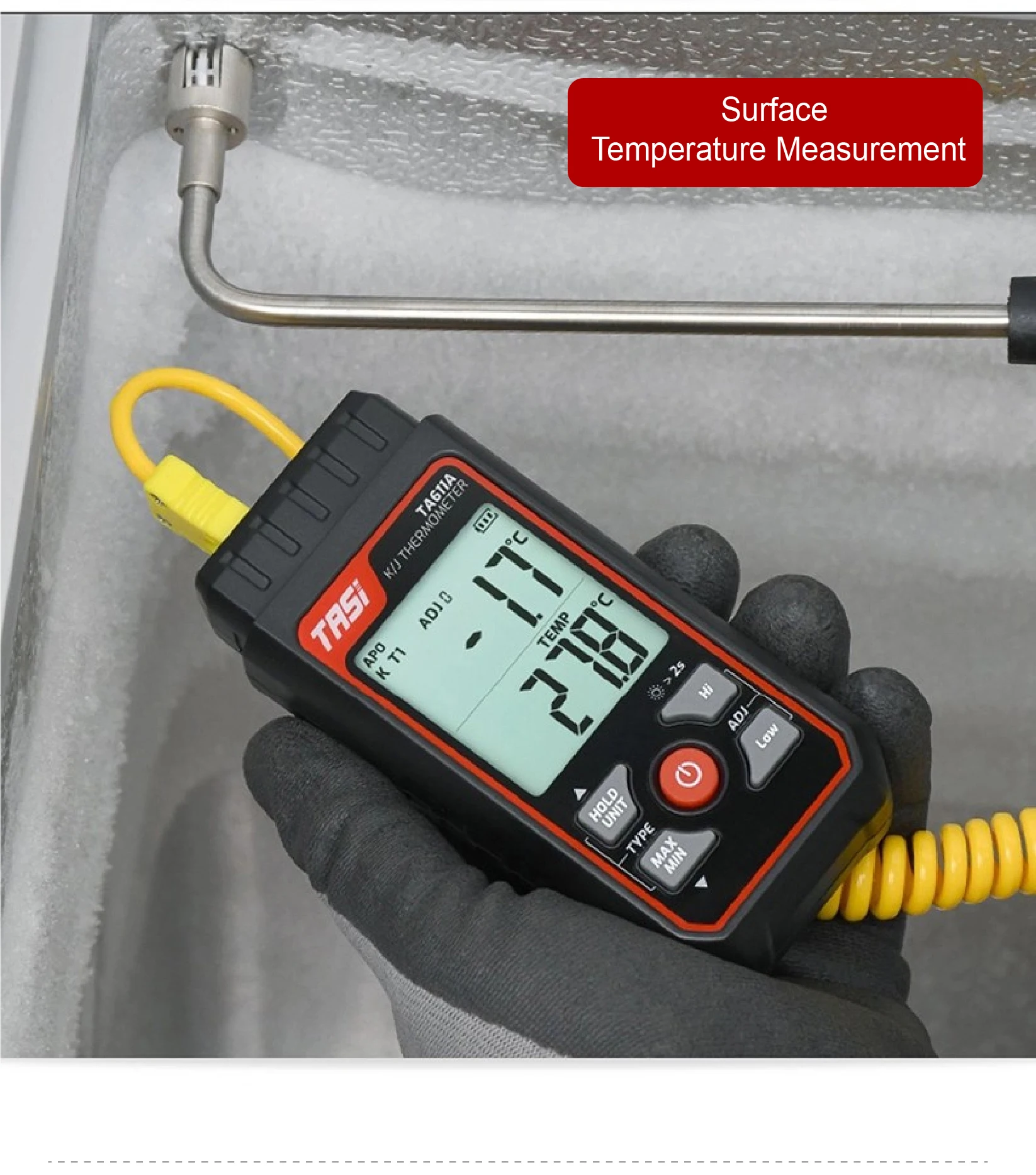

Works with various K/J-type thermocouple probes, including options for liquid, air, and surface temperature measurements.

4.Applications

Industrial Monitoring: Ideal for HVAC systems, manufacturing, and power plants.

Laboratory Research: Precise readings for scientific experiments.

Field Work: Portable design supports on-site temperature measurement.

5.FAQs

Q1: What is the difference between TA611A and TA611B?
A1: TA611A is designed for single-channel measurements, while TA611B supports dual-channel measurement for monitoring two locations simultaneously.

Q2: Can this thermometer measure air and liquid temperatures?
A2: Yes, it supports various probe types, including air, liquid, and surface probes, for versatile applications.

Q3: Are the high/low alarm values adjustable?
A3: Yes, the alarm thresholds can be customized to suit your requirements.

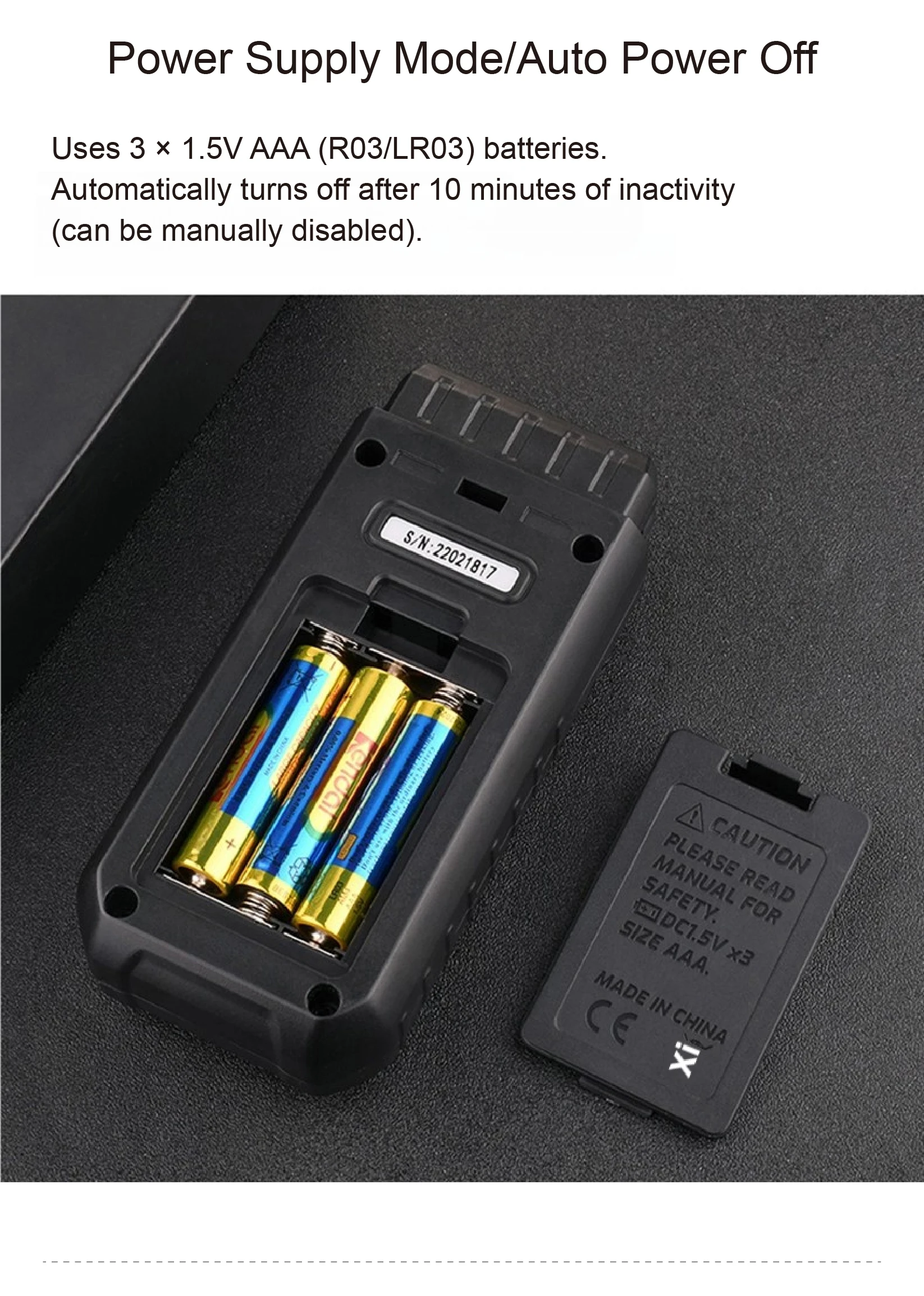

Q4: Does it automatically turn off?
A4: Yes, it automatically powers off after 10 minutes of inactivity to conserve battery life. This feature can also be manually disabled.
